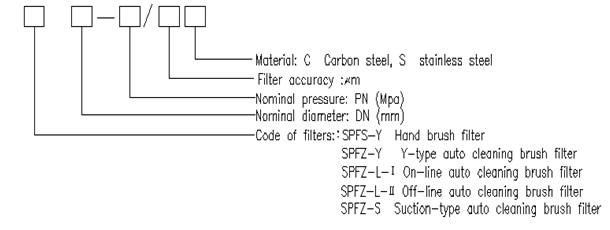

Denotation of product types

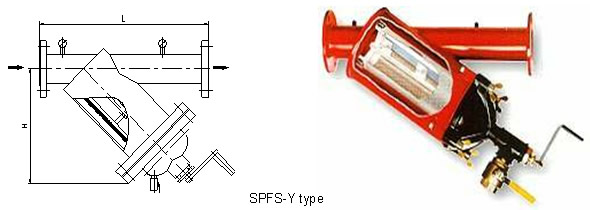

1、Hand brush filter (SPFS-Y- type)SPFS-Y hand brush filter is a simple, high efficiency filter. When dusts are accumulated at the screen, pressure difference will appear in the inlet and outlet locations. If the pressure difference reaches a level for process requirement, it is necessary to wash the filter. During washing operation, the only thing to be done is to open the sewage valve and turn the handle for 3-4 revolutions without the need to remove the filter.Features●Precise space-saving design with linear structure;
●High-precision high strength wedge screen with filtering accuracy 100-3000μm;
●Simple wash mode: stainless steel brush;
●Without water current interruption during backwashing;
●Less water consumption during backwashing, less than 1% of overall flow.
Table of structure dimension
|
Nominal diameter |
Size (mm) |
Sewage valve |
|
L |
H |
|
DN50 |
500 |
360 |
G1/2 |
|
DN65 |
500 |
360 |
|
DN80 |
550 |
480 |
G3/4 |
|
DN100 |
600 |
485 |
|
DN125 |
700 |
580 |
G1 |
|
DN150 |
700 |
580 |
|
DN200 |
800 |
650 |
|
DN250 |
1000 |
750 |
|
DN300 |
1200 |
850 |
|
|
